Stroje/Soustruh/ #2961

Item: Centre lathe
Catalogue No.: 2961
WWW: https://strojesvoboda.com/e2961
Model, parameters: SUS 63/2000
  • Swing over bed 655 mm
    Swing over cross slide 390mm
    Distance between centers 2000mm
    Spindle bore 82 mm
    Spindle diameter in front bearing 150 mm
    Taper in spindle 100 metric
    6 Morse Taper Tailstock
    Max. workpiece weight 6000kg minimum
    Max. torque spindle 6300N m at maximum speed 22.4 min-1
    Max. profile knife 40x40mm
    Spindle speed - 22 degrees
    normal range 9-1200min-1
    increased number of 12,5-1600min-1
    reduced range of 4.5-1120min-1
    longitudinal extent of the 0.049-3mm / OT
    lateral extent of 0.024 5-1,5 mm / rev
    1948 Metric pitch is 0.5-224 mm
    Whitworth thread 48 / 1 '56-1/4
    37 modular module 0,25-56
    48 Diametral pitch DP 1/2-112
    1948 CP Circular Pitch 1/64-3 1 / 2
    Motor for spindle drive 18,5 kW
    Machine dimensions:
    width 1750 mm
    length as the distance between centers 3420-10170 mm
    Weight (the distance between centers) 5200-9000 kg
Status: READY to be shown RUNNING
   All offered items are our property, physically ON OUR STOCKS.

Type photos:

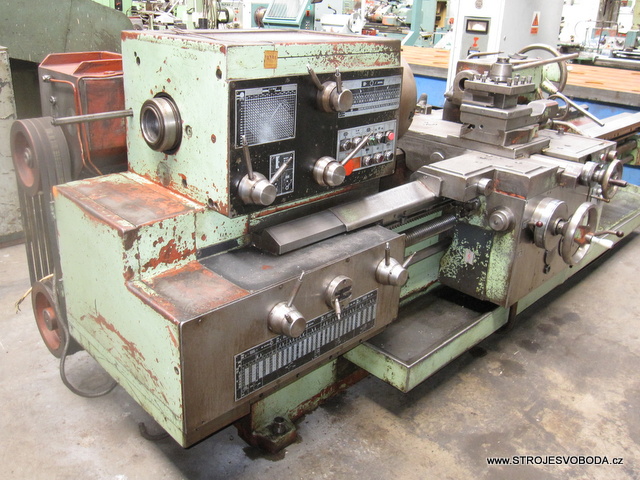

Soustruh hrotový SUS 63/2000 (2961 SUS 63-2000 (3).JPG)

Machine photos:

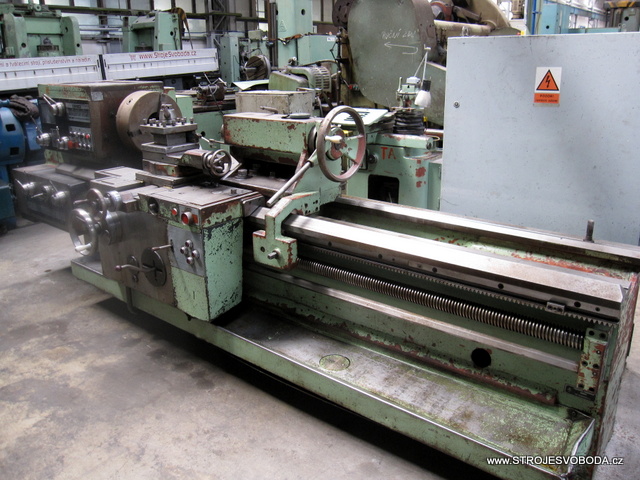

Soustruh hrotový SUS 63/2000 (2961 SUS 63-2000 (2).JPG)

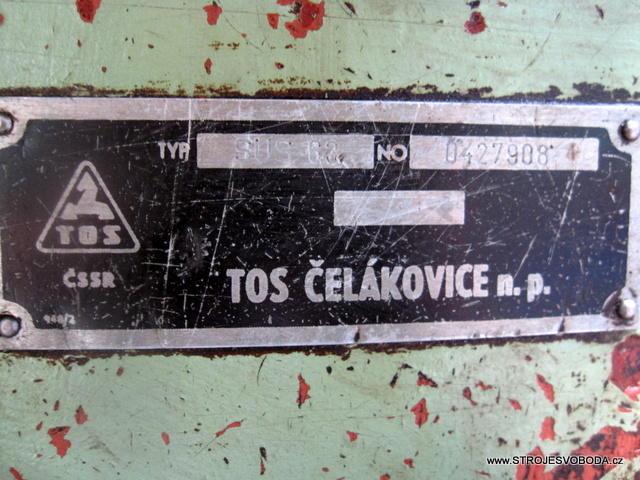

Soustruh hrotový SUS 63/2000 (2961 SUS 63-2000.JPG)
