Vertical turning lathe - VTL #13233 (Stroje/Karusel)

Stroje/Karusel/ #13233

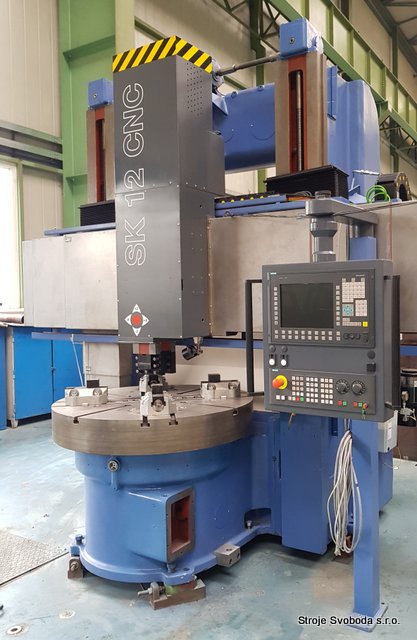

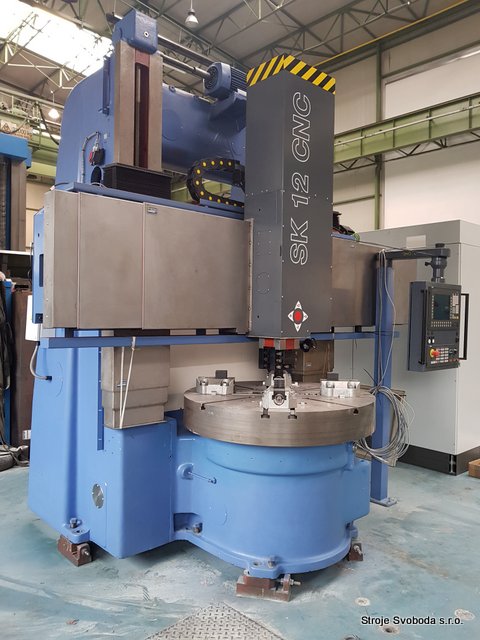

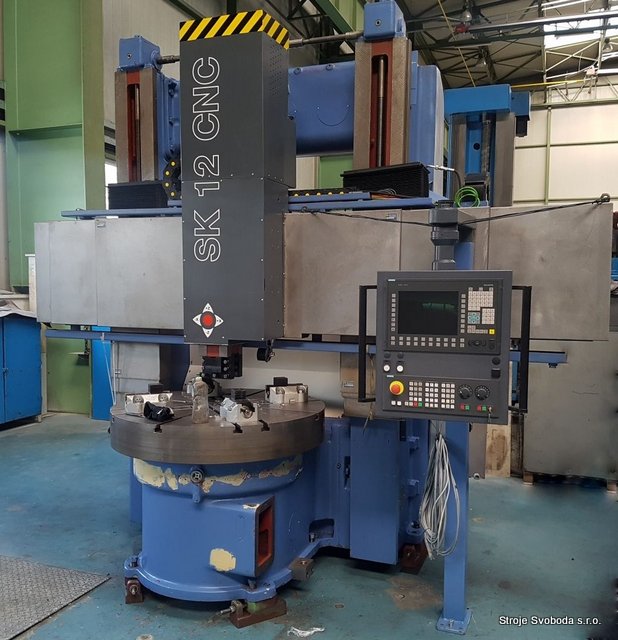

Item:	Vertical turning lathe - VTL
Catalogue No.:	13233
WWW:	https://strojesvoboda.com/e13233
Model, parameters:	SK 12 CNC-2016-SIEMENS SINUMERIK 840 Dsl

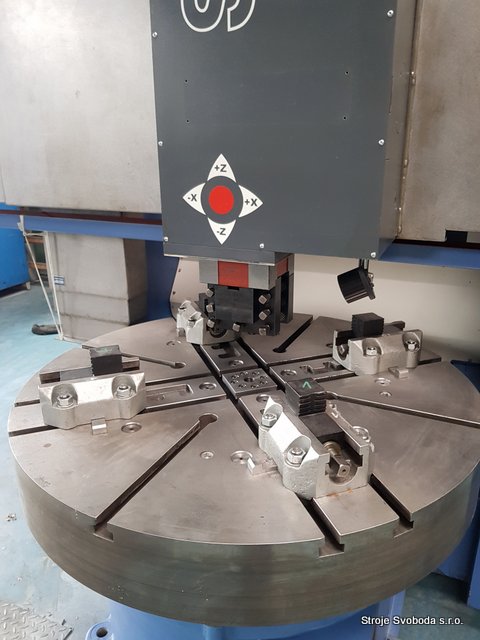

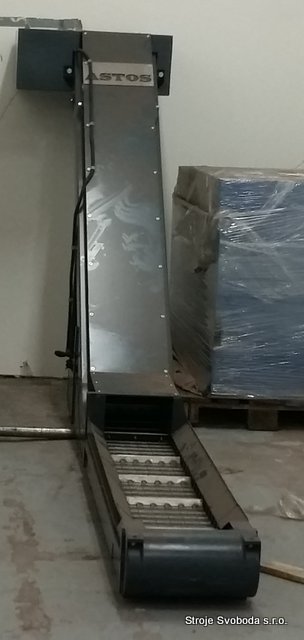

Description:	control system SIEMENS SINUMERIK 840 Dsl max. clamping table turns 194 r-min. with Siemens Sinumerik control and chip conveyer like new - never used. Technical specifications Working range Diameter of clamping plate - 1180 mm Maximum workpiece weight - 4000 kg Maximum turning diameter - 1350 mm Maximum workpiece height - 1000 mm Drive plate clamping Maximum drive power - 50 kW Speed of the clamping plate 1st Grade - 89 min-1 II. grade - 194.42 min -1 Torque moment of the clamping plate 1st stage - 5365 Nm-1 II. stage - 2461 Nm-1 Crossbar Motion range - 0 - 1050 mm Support Axis X - 0 - 900 mm motion range Z-axis travel range (cooling) - 0 - 480 mm Z-axis travel range (without cooling) - 0 - 520 mm X-axis adjustment rate - 0 - 4.5 m / min Axis Z - 0 - 4.5 m / min The greatest cutting force is 10 kN Cross section of the slider - 180 x 180 mm Recommended cross section of the tool - 40 x 40 mm
Status:	READY to be shown RUNNING
