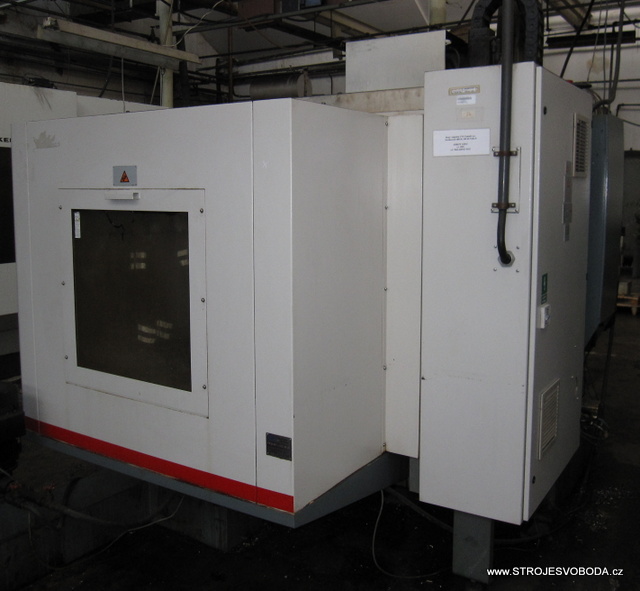

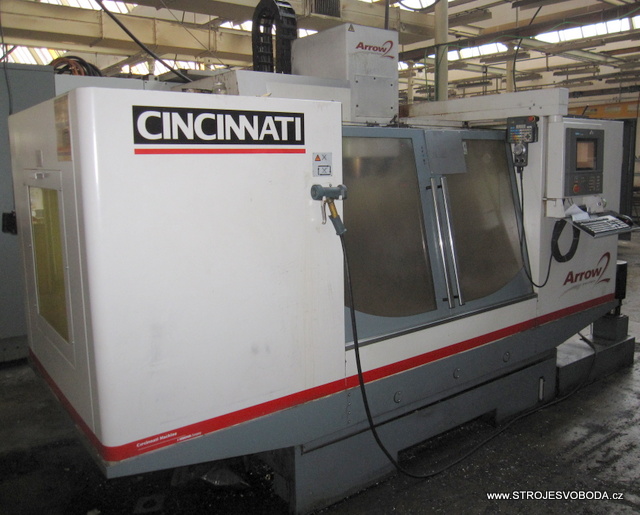

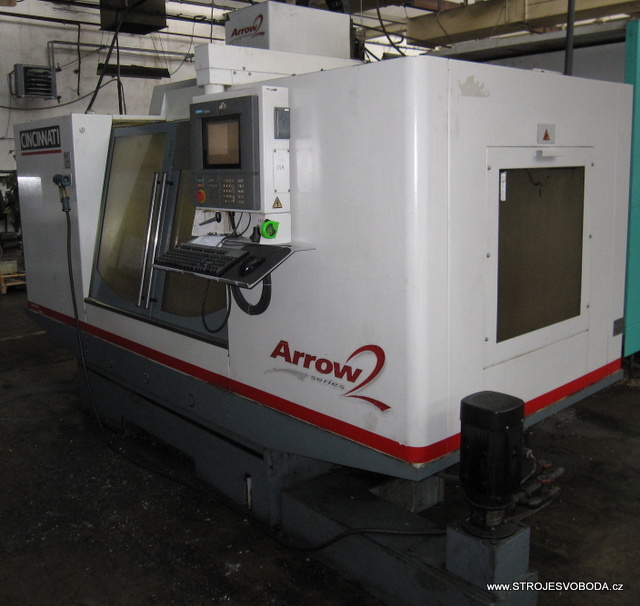

saber specifications
- Units in 1250
CNC system:
- SIEMENS Acramatic 2100
- The number of axes X, Y, Z
Lubrication system:
- Oiler axis ball screw lubricant P64
- Bearings path in X, Y, Z lubricant P64
- Bearing spindle automatically
- Lubricating oil, hydraulic pneumatic system P38
Cooling system:
- Supply system coolant stream
- Contents of the tank 600 l
Requirements for air:
- Air pressure at the inlet 5.8 + -1 bar
- Air consumption of 10.5 dm3 / s
Electric power requirements. Energy:
- The spindle drive 22 kVA
- Axis drives (including 4-axis) 24 kVA
- Engine tool magazine 46 VA
- Standard coolant pump 0,8 kVA
- Motor cleaning 2.4 kVA
- Pump for cooling through the spindle 8 kVA
- Conveyor motor 0,8 kVA
- Transmission 0.75 kVA
- Various 0.35 kVA
- Cooling unit 1 kVA
- Grease pump 24 VA
- Pallet conveyor 1.2 kVA
- Cleaning pallets 2.4 kVA
Range of motion axes X, Y, Z:
- Longitudinal axis X - 1270 mm table
- Transverse axis Y - cross slide 762 mm
- Vertical axis - 820 mm
Distance of spindle from the desktop:
- Min. 150 mm
- Max. 970 mm
Table - X:
- Dimensions desktop
- Length 1370 mm
- Width 765 mm
- Load capacity of 910 kg
Headstock - Y:
- AC motor 9 kW
- Speed range:
- Min. 60 rev / min
- Standard max. 8000 rev / min
- Increased speed max. 10,000 rev / min
- Increased torque max. 500 r / min
Linear axial displacements and loads:
- Working feeds X, Y, Z 15000 mm / min
- Rapid X, Y 24 m / min
- Z rapid traverse 18 m / min
- Axle loads (during operation):
- X, Y 3 kN
- From 7 kN
Auto Tray / replacement tools:
- Capacity - the number of tools 21
- Weight of the tool holder max 6.8 kg
- Loading tray (with evenly distributed) max. 68 kg
- Tool length max. 385 mm
- Tool diameter (when full neighboring sites) max. 80 mm
- Tool diameter (omitting the neighboring sites) max. 160 mm
- Tool exchange time (from cut to cut) 7.5
Weight machines / Built area:
- The net weight of the machine ca. 8800 kg
- Overall machine height (max) 3.6 m
- Overall dimensions of the built-up areas:
- Without chip conveyor - width of 4,618 m
- With chip conveyor - width of 5,154 m
- Open cabinet door - depth of 2.55 m
machine accessories

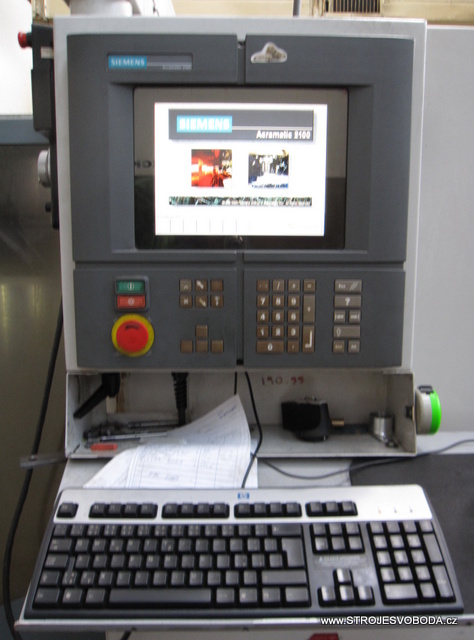

CNC system Acramatic 2100
tool magazine

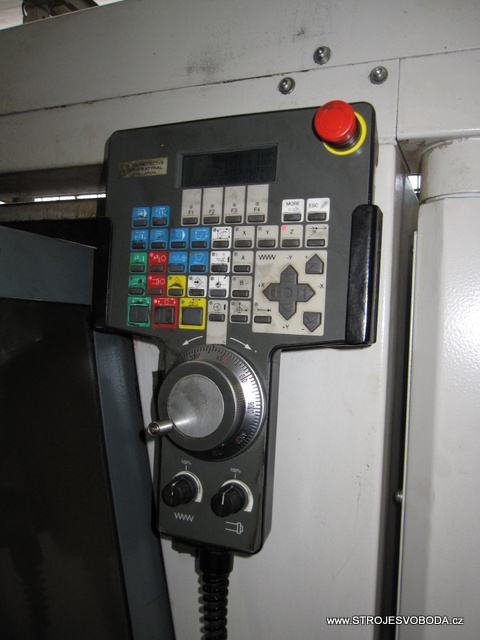

electronic hand wheel
Status:
READY to be shown RUNNING
All offered items are our property, physically ON OUR STOCKS.
