Centre Lathe to Overhaul #15618 (Stroje/Soustruh)

Stroje/Soustruh/ #15618

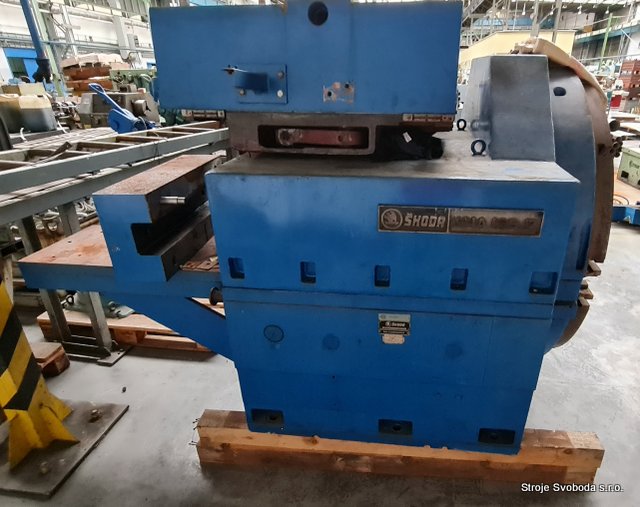

Item:	Centre Lathe to Overhaul
Catalogue No.:	15618
WWW:	https://strojesvoboda.com/e15618

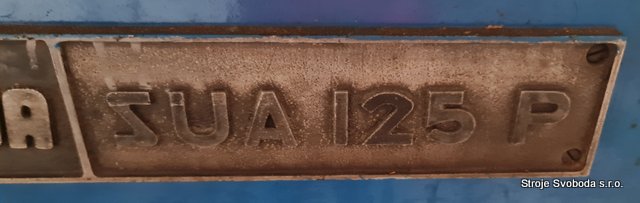

Model, parameters:	SUA 125/3000
Producer:	Škoda

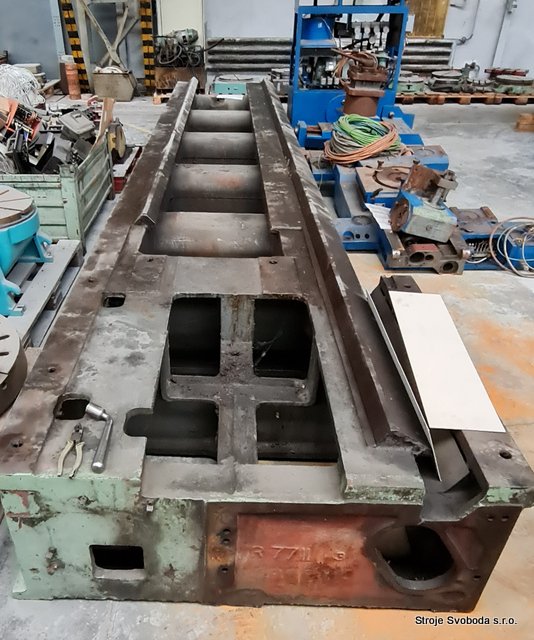

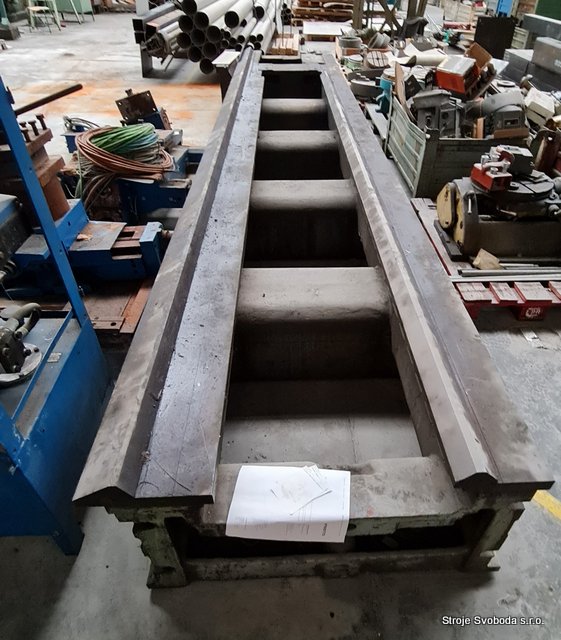

Description:	For overhaul Swing over bed 1080 mm Swing over cross slide 720 mm 3 m Distance between centers Maximum weight of workpiece 10 t The greatest torque on the spindle 28 000 N m The smallest economical turning diameter 200 mm Bed width 950 mm The main motor 40 kW spindle 36 degrees of range 1,4-315 / min Diameter of spindle front bearing 220 mm Spindle taper Metric 80 The largest outer diameter of the workpiece, which can be clamped jaws 780 mm longitudinal feed 36 degrees of range 0,125-48 mm / rev Longitudinal rapid traverse 4000 mm / min The largest section of 70x70 mm instrument Feed cylindrical sleeve 300 mm Cone tip for clamping 80 metric Weight machines for the distance between centers 4 m 14200 kg

All offered items are our property, physically ON OUR STOCKS.
