Item: Centre Lathe
Catalogue No.: 15214
WWW: https://strojesvoboda.com/e15214
Model, parameters: 16K20/1000
Producer: Krasnyj proletarij
Production Year:
  • 1978
  • Max processing diameter over bed: 400 mm
    Max processing diameter over support: 220 mm
    Max processing diameter in recess of bed: 400 mm
    Max distance between centers: 1000 mm
    Front end of spindle according to DIN: 6К
    Diameter of cylindrical spindle bore: 55 mm
    Size of conical spindle bore: Morze 6
    Number of spindle rotation speeds: 23
    Working range of revs: 12,5-1600 rpm
    Main drive power: 11 kW
    Number of feeds: 42
    Longitudinal feeds range: 0,05-2,8 mm/rev
    Transversal feeds range: 0,002-0,11 mm/rev
    Metric thread: 0.5...192 mm
    Inch thread: 24...1.625
    Modular thread: 0.5...48
    Pitch thread: 96-1
    Sleeve stroke: 200 mm
    Dimensions (LxWxH): 2795x1190x1500 mm
    Machine weight: 3005 kg
   All offered items are our property, physically ON OUR STOCKS.

Type photos:

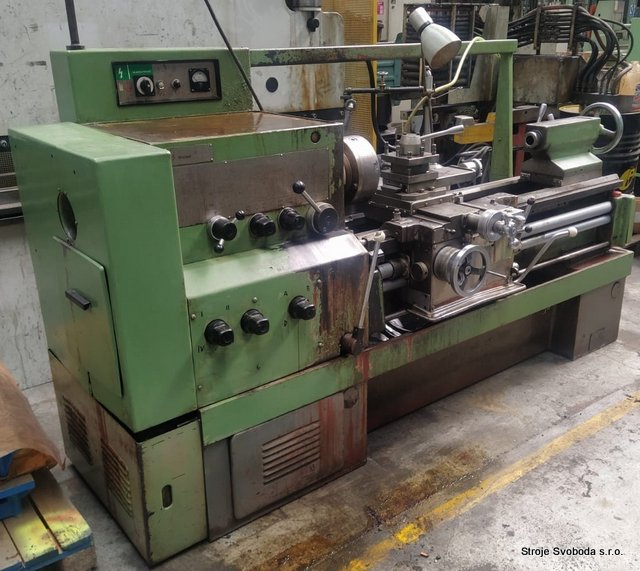

Soustruh hrotový 16K20/1000 (Soustruh hrotovy 16K20 - 1000 (1).jpg)

Machine photos:

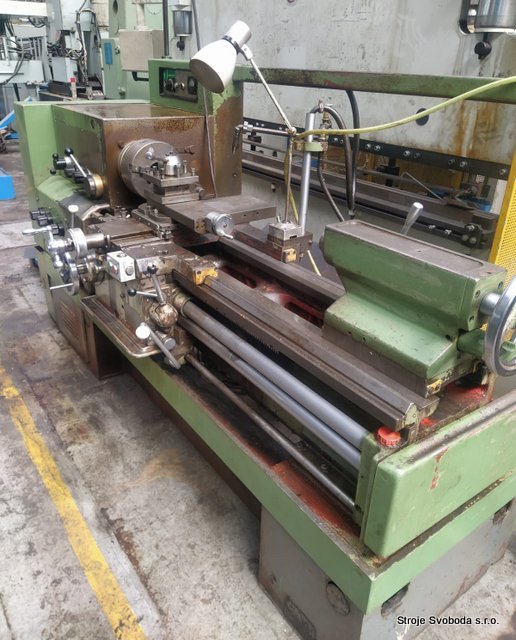

Soustruh hrotový 16K20/1000 (Soustruh hrotovy 16K20 - 1000 (2).jpg)

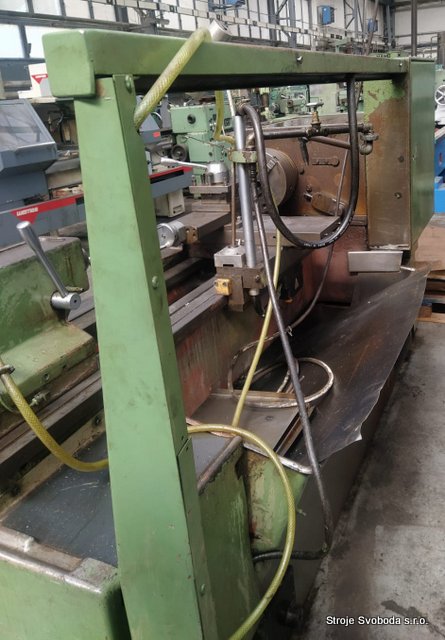

Soustruh hrotový 16K20/1000 (Soustruh hrotovy 16K20 - 1000 (5).jpg)

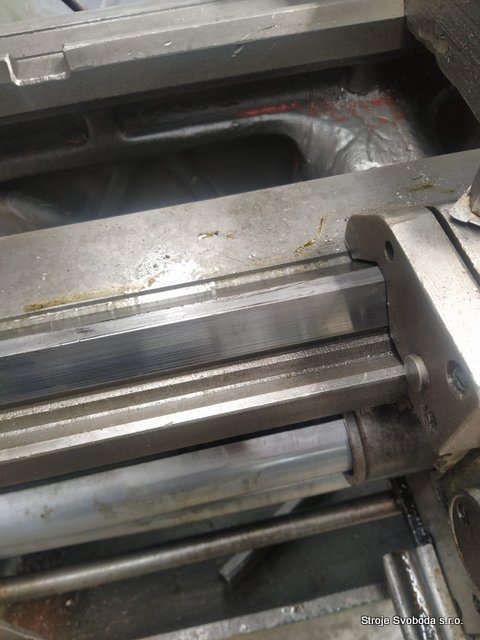

Soustruh hrotový 16K20/1000 (Soustruh hrotovy 16K20 - 1000 (4).jpg)

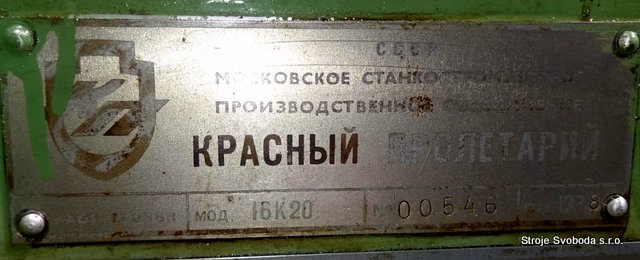

Soustruh hrotový 16K20/1000 (Soustruh hrotovy 16K20 - 1000 (3).jpg)
