Stroje/Karusel/ #13660

Item: Vertical lathe - double column
Catalogue No.: 13660
WWW: https://strojesvoboda.com/e13660
Model, parameters: SSP 2600
Description:
  • Max workpiece diameter [mm] 3,000
    Maximum workpiece height [mm] 2,000
    Max workpiece weight [kg] 16,000

    Diameter of clamping plate [mm] 2 600
    Maximum clamping plate speed [min-1] 120
    Drive plate drive motor power [kW] 93/120
    Maximum torque [kNm] 35/55

    Vertical slider adjustment - Z axis [mm] 1 200
    Rapid traverse of axes X and Z [mm.min-1] 8000
    Cross section [mm] 280x280
    Maximum cutting power [N] 50,000

    Machine weight [kg] 50,000

    Technical description
    The machine frame is made of castings.
    The drive of the clamping plate is realized by means of a torsion motor, which also ensures the positioning of the table (C axis). The clamping plate is 16-cell hydrostatic and oil-cooled.

    The machine is equipped with one support. The sliding guide surfaces are hardened and ground. The guide surfaces are lined with sliding plastic, lateral guides provide rolling elements.

    As far as mechanical properties are concerned, the machine achieves standard precision according to the current standards for machine tools.

    The machine is a specific design and is designed to complement control and control systems, components and accessories.
   All offered items are our property, physically ON OUR STOCKS.

Type photos:

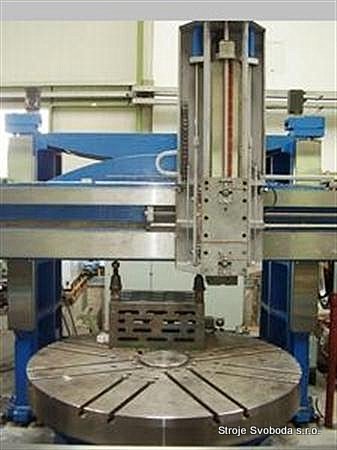

Dvoustojanový svislý soustruh SSP 2600 (Vertical Turret Lathe - Double Column SSP 2600 CNC Blansko  (2).jpg)

Machine photos:

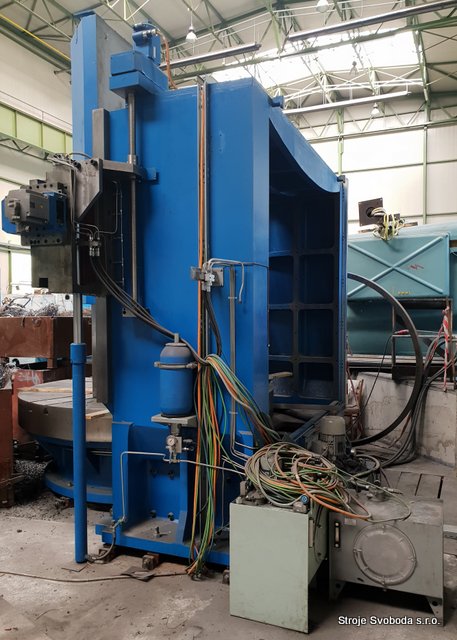

Dvoustojanový svislý soustruh SSP 2600 (Vertical Turret Lathe - Double Column SSP 2600 CNC Blansko  (2).jpg)

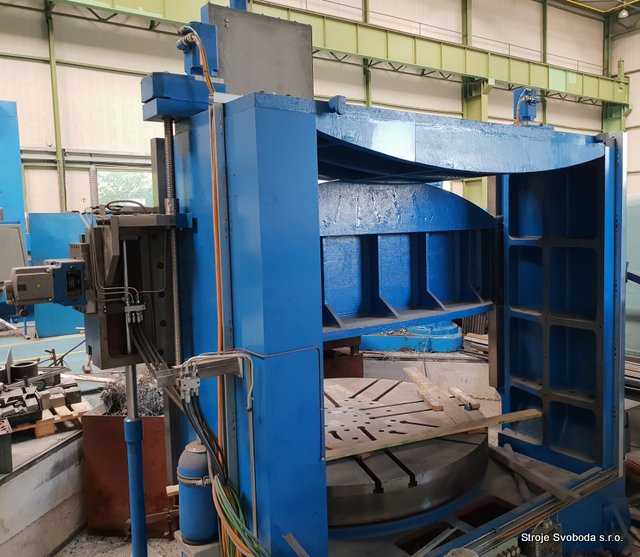

Dvoustojanový svislý soustruh SSP 2600 (Vertical Turret Lathe - Double Column SSP 2600 CNC Blansko  (3).jpg)

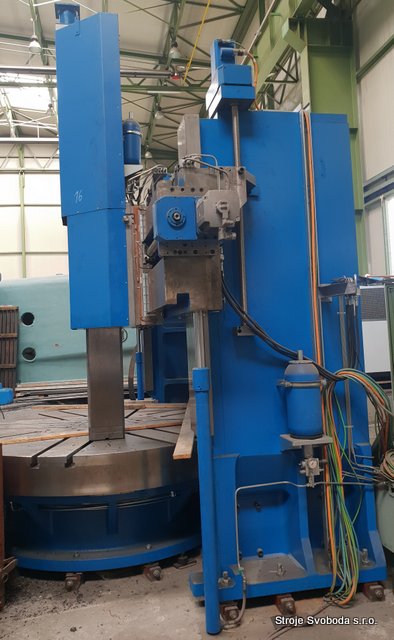

Dvoustojanový svislý soustruh SSP 2600 (Vertical Turret Lathe - Double Column SSP 2600 CNC Blansko  (1).jpg)

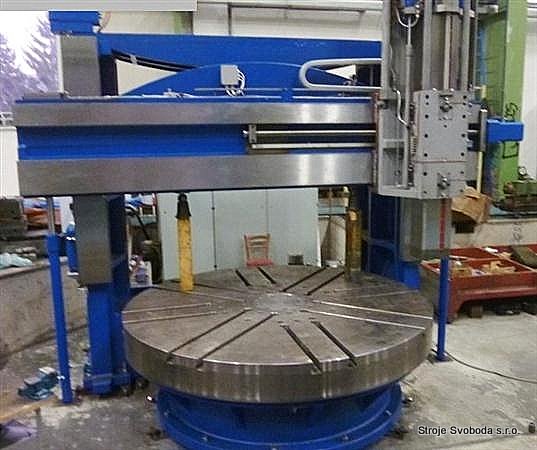

Dvoustojanový svislý soustruh SSP 2600 (Vertical Turret Lathe - Double Column SSP 2600 CNC Blansko  (1)-001.jpg)
